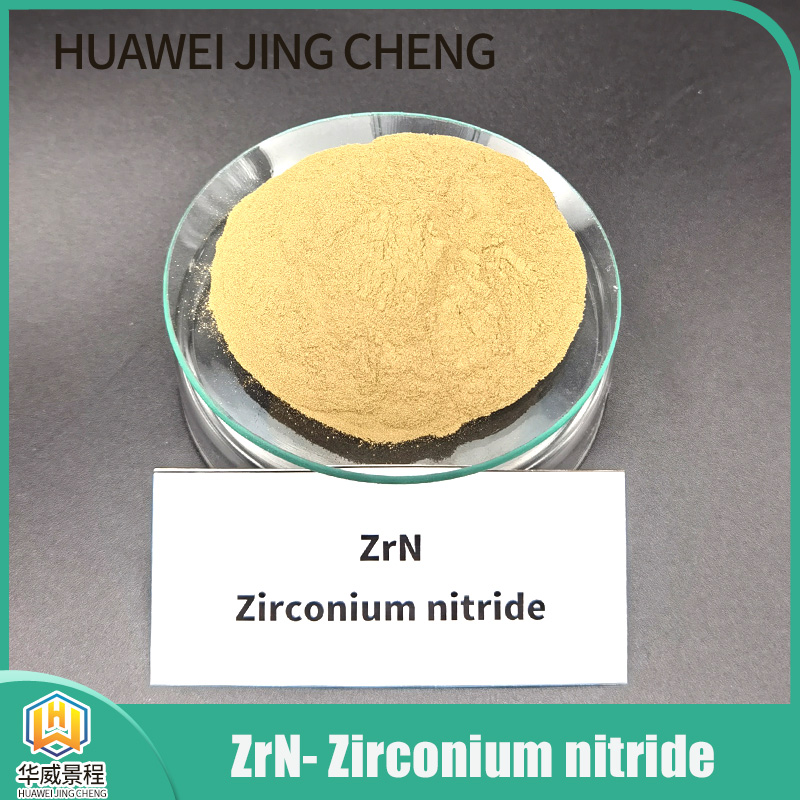

thermal spraying Zirconium Nitride-ZrN

  • Molecular formula: ZrN
  • Density: 7.09g/cm3
  • Melting point: 2980℃
  • color: light yellow
  • :
  • :
■ Specifications

 product description:

Zirconium Nitride (ZrN) is a refractory hard compound with high decomposition temperature, good chemical stability, good high temperature resistance, corrosion resistance, and wear resistance. It is a good high temperature structural material, super-hard tool material and surface protection material.

Performance characteristics:

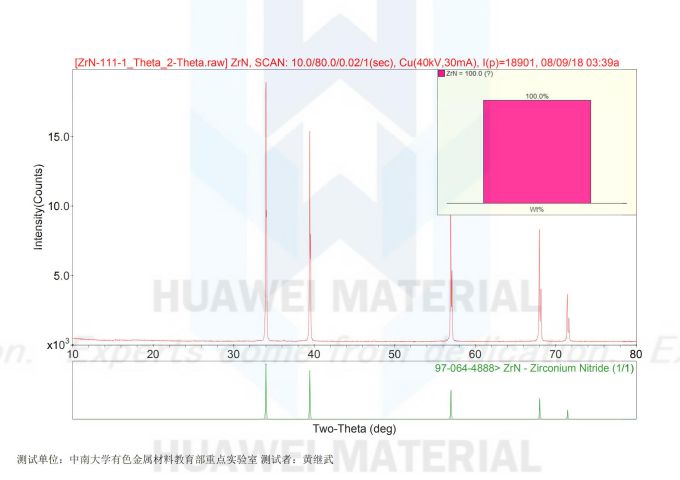

1. High purity, no impurity phase detected by XRD, low content of metal impurity elements detected by GDMS/ICP;

2. Concentrated particle size distribution, good fluidity, no pipe blockage, and good thermal spraying quality.

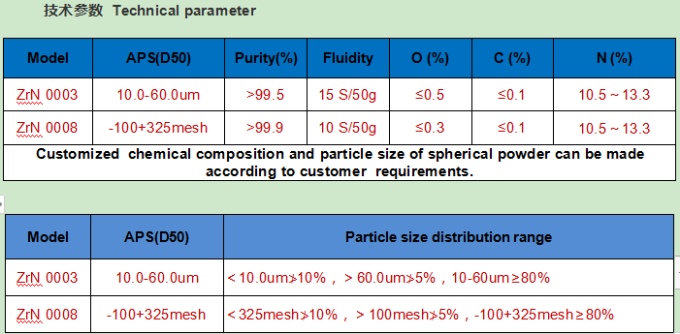

■ Technical Data



Zirconium Nitride
Size Distribution Report of  Zirconium Nitride ZrN-2018.08.09_00

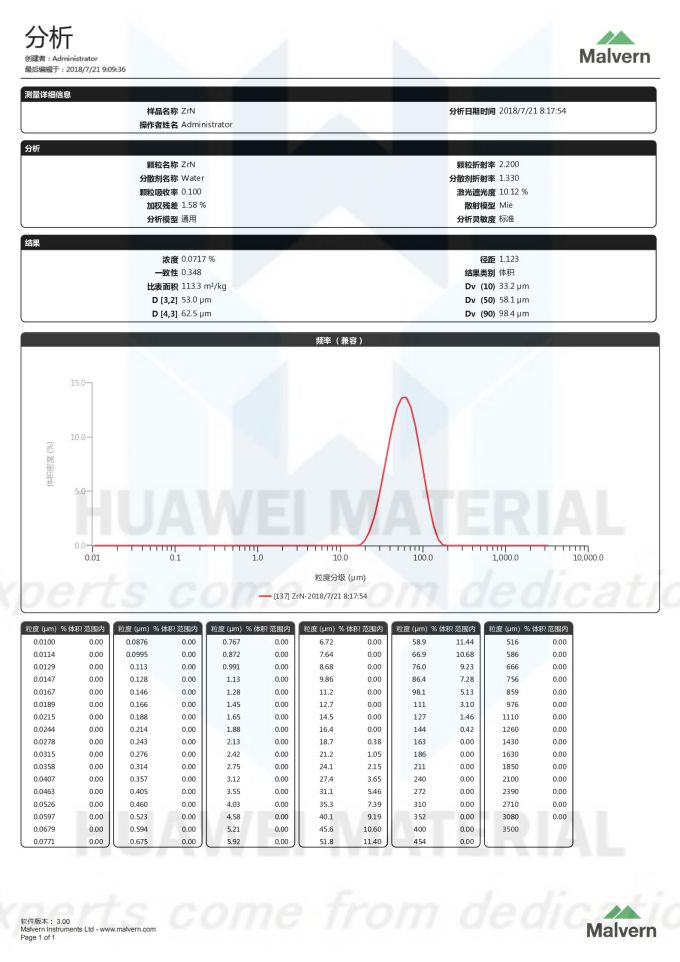

Size Distribution Report of  Zirconium Nitride ZrN-2018.07.21_00

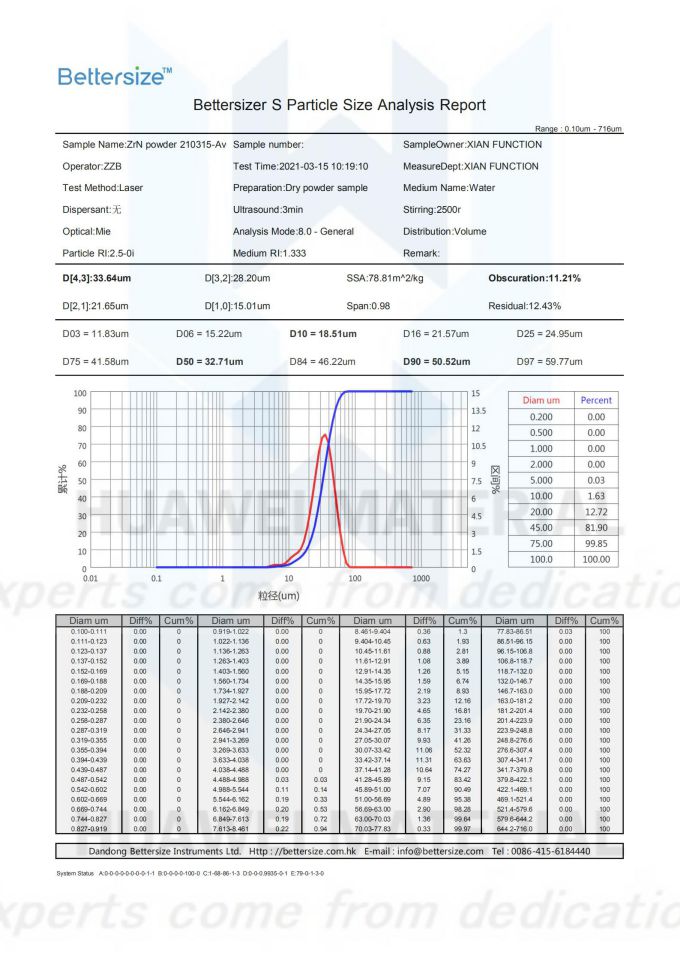

Partical Size Analysis of ZrN powder-(10-60um)_00
Partical Size Analysis of Zirconium NitrideZrN powder-1 210506-Average_00

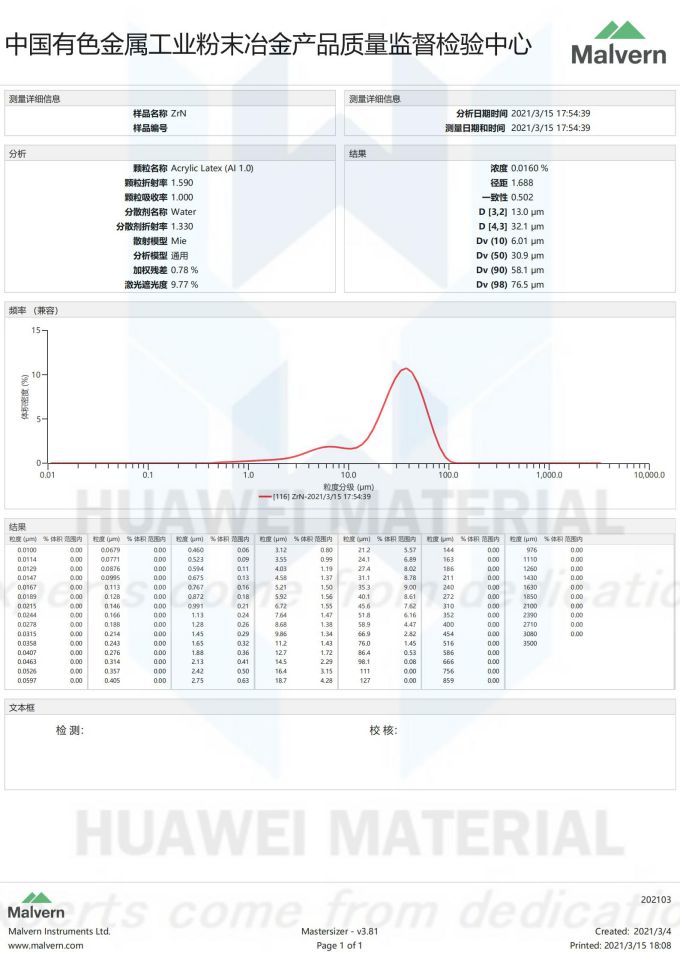

Size Distribution Report of  Zirconium Nitride (ZrN)(D50=30.9um)2021.03.15_00
