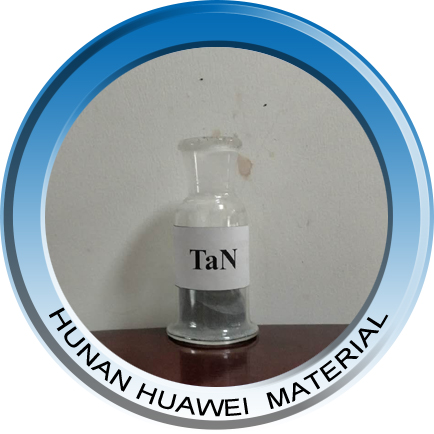

TaN-Tantalum nitride

  • Molecular weight Colour Density Melting point Boiling point Nitrogen content : 194.9
  • Colour: gray
  • Nitrogen content: ≥6.8
  • Density: 13.4g/m3
  • Melting point: 3090℃
  • Boiling point: 4800℃

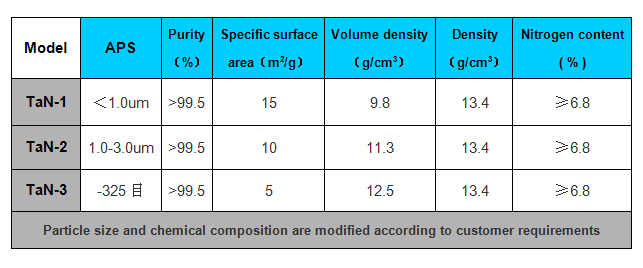

■ Specifications

Production information:

Tantalum Nitride (TaN) has excellent physical, chemical and mechanical properties (such as high hardness, wear resistance, chemical inertness, thermal stability and low temperature coefficient of resistance), and is widely used in wear-resistant coatings, thin film resistors and integrated circuits Diffusion barriers and other fields in China.

Performance character:

1.High purity: the highest purity can reach 99.99%, XRD detect no impurity phase.



■ Technical Data

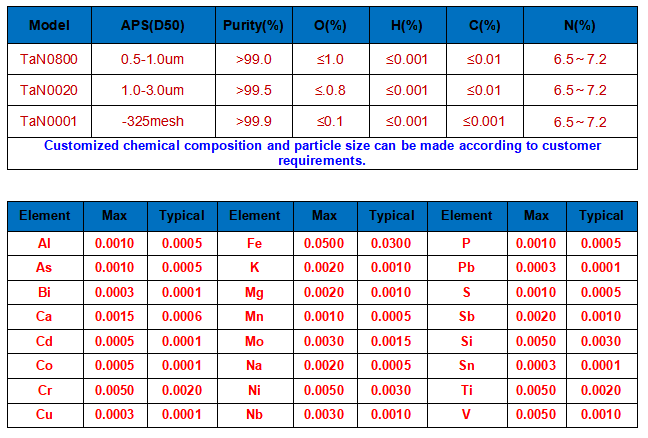

TaN-technical parameter

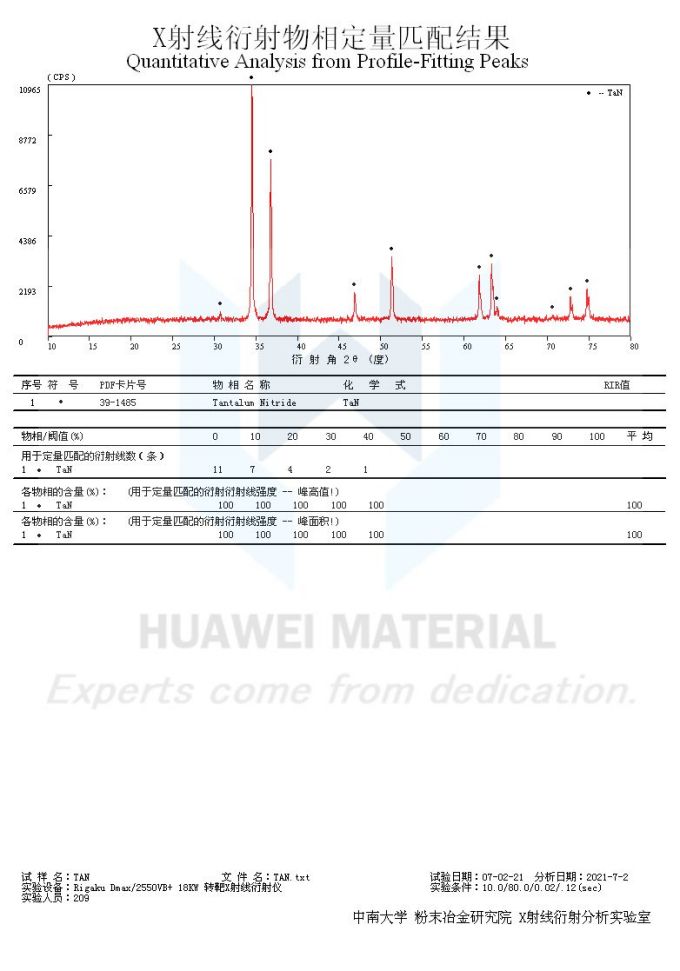

TaN-2021.07.02第二次氮化

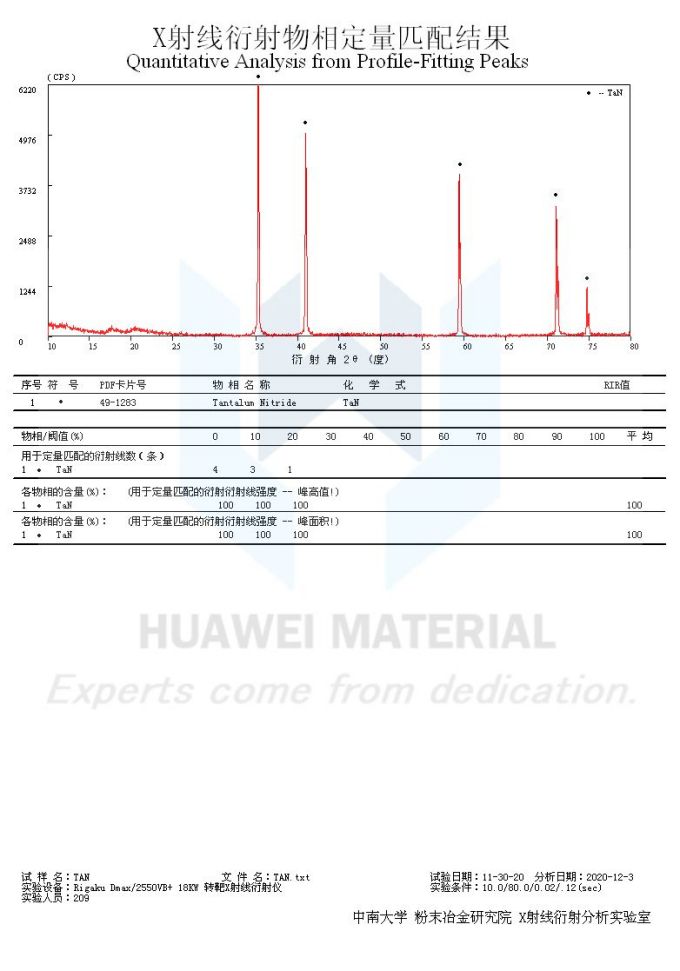

TaN-2020.12.03
