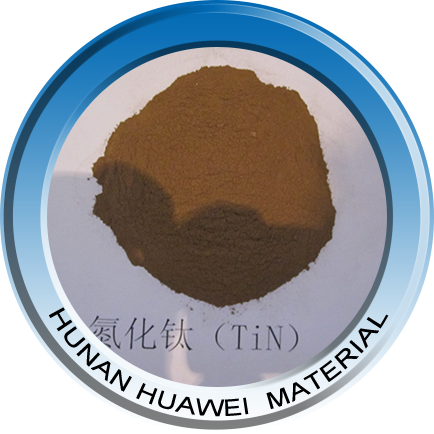

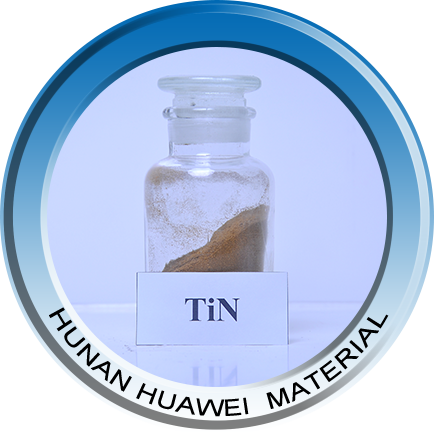

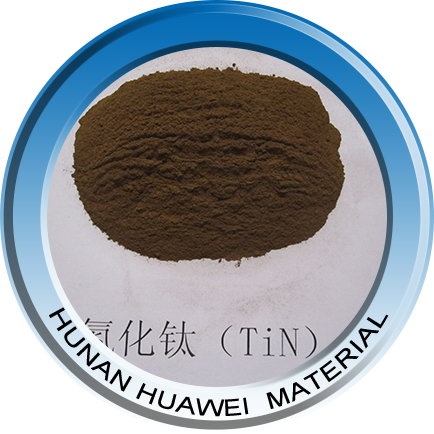

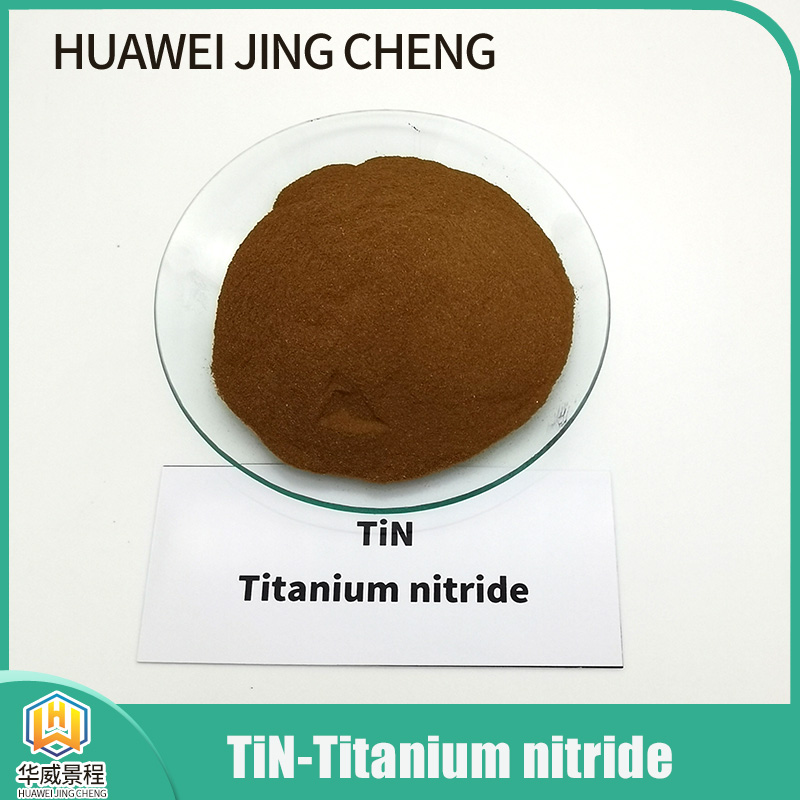

TiN-Titanium nitride

  • Molecular weight: 61.89
  • Colour: Golden
  • Nitrogen content: ≥21%
  • Density: 5.43 g/ cm3
  • Melting point: 2950℃
  • Mohs hardness: 8~9
■ Specifications

Production information:

Titanium nitride (TiN) is a new ceramic material with excellent properties such as high temperature resistance, corrosion resistance, wear resistance, thermal shock resistance, low density and high hardness. It is mainly used in high temperature resistance, wear resistance and aerospace and other fields.

Performance character:

1. High purity: the highest purity can reach 99.99%, XRD detect no impurity phase, GDMS detect low metal impurity element content;

2. Small particle size: the smallest particle size is 10-30nm;

3. Concentrated distribution: standard normal particle size distribution, no bimodal or multimodal;

4. Typical production:

Standard 1-3um (D10>1.0um, D50: 1.21.8um, D90<3.0um, 80% of the particle size is concentrated in the range of 1-3um).

■ Technical Data

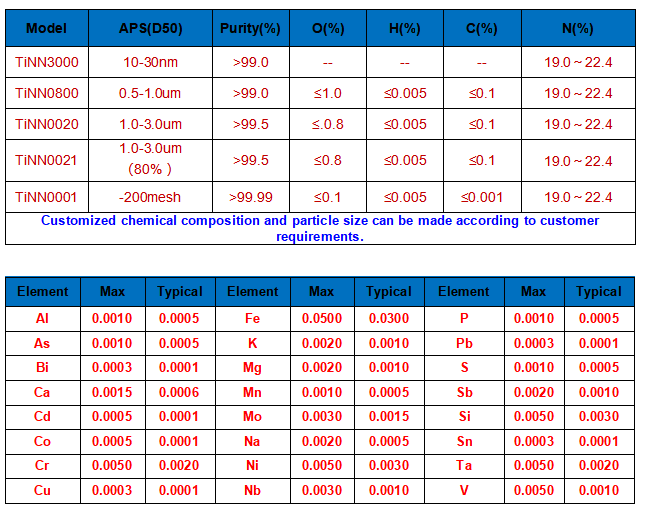

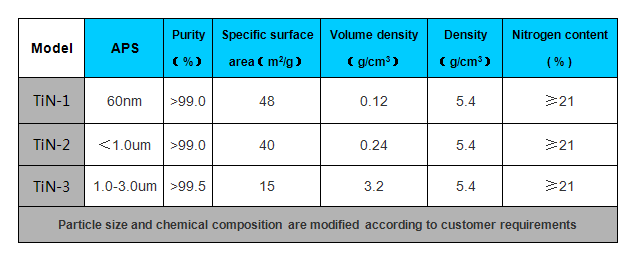

TiN-technical parameter

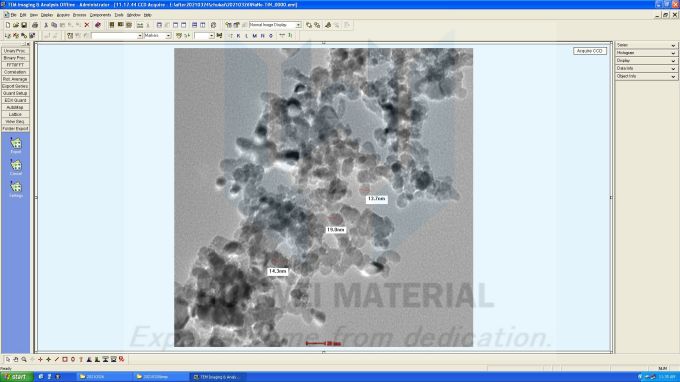

NaNo-TiN-0000

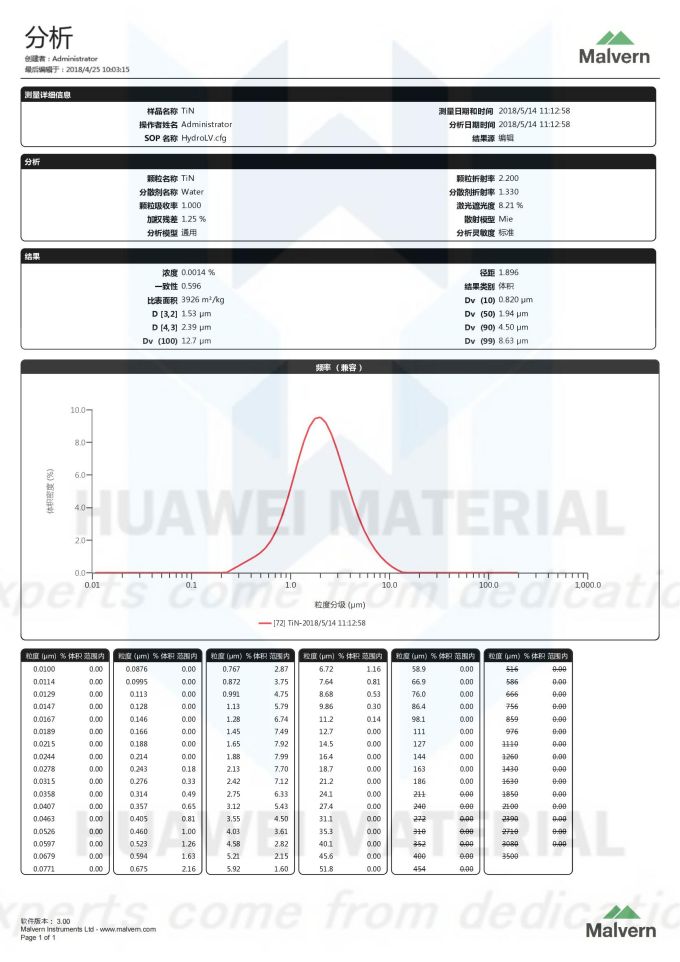

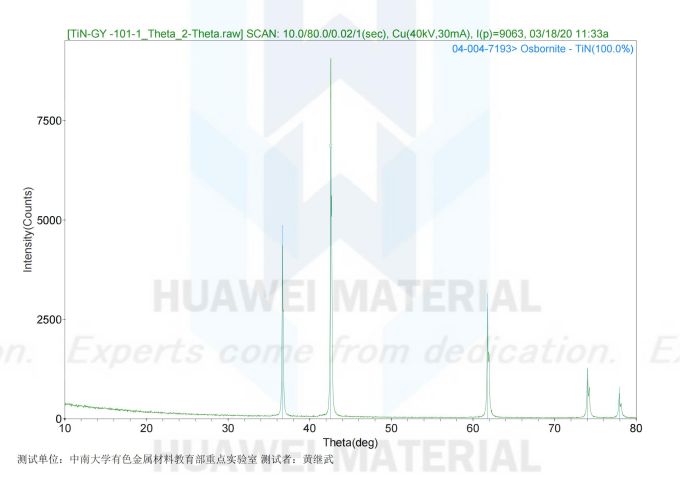

TiN-20200318_00

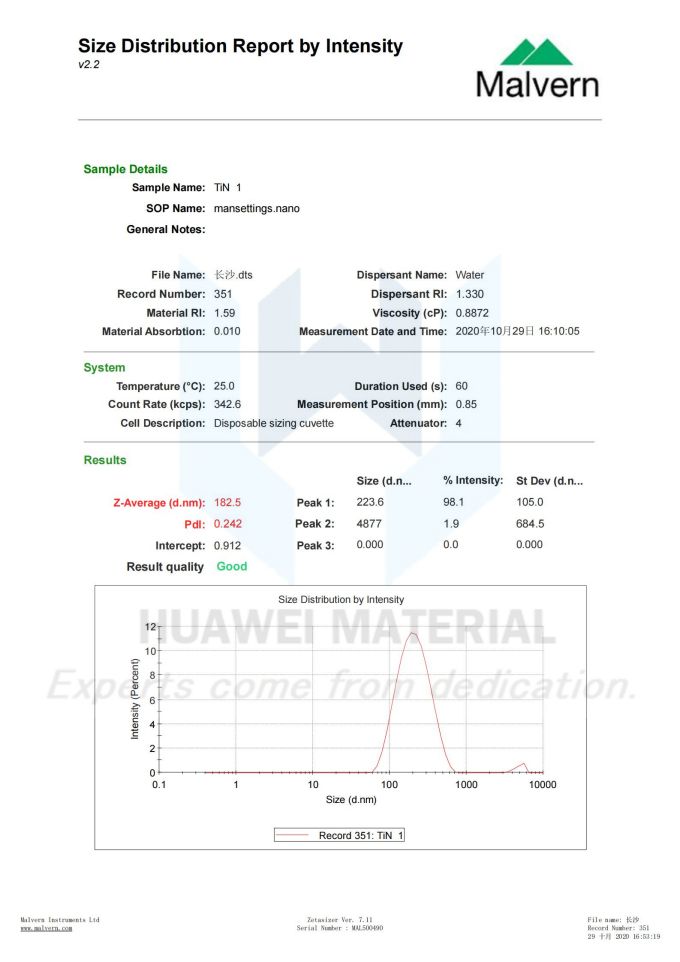

TiN(D50=0.223um)20201029_00
TiN(D50=0.223um)20201029_00
