thermal spraying Titanium carbide-TiC

  • color: gray
  • Density: 4.93g/cm3
  • Melting point: 3160ºC
  • Boiling point: 4300ºC
  • :
  • :
■ Specifications

 Product description:

Titanium carbide is a typical transition metal carbide. It has the basic characteristics of high hardness, high melting point, wear resistance and electrical conductivity. It forms binary, ternary and quaternary solid solution compounds with tungsten carbide, tantalum carbide, niobium carbide, and titanium nitride. It is used in spraying materials, welding materials, hard film materials, military aviation materials, hard alloys and cermets.

Performance characteristics:

1. High purity, no impurity phase detected by XRD, low content of metal impurity elements detected by GDMS/ICP;

2. Concentrated particle size distribution, good sphericity, good fluidity, no tube blockage, good quality of 3D printing and thermal spraying.

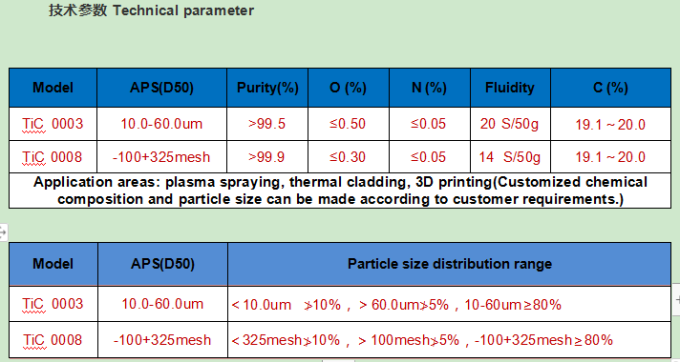

■ Technical Data



Titanium carbide

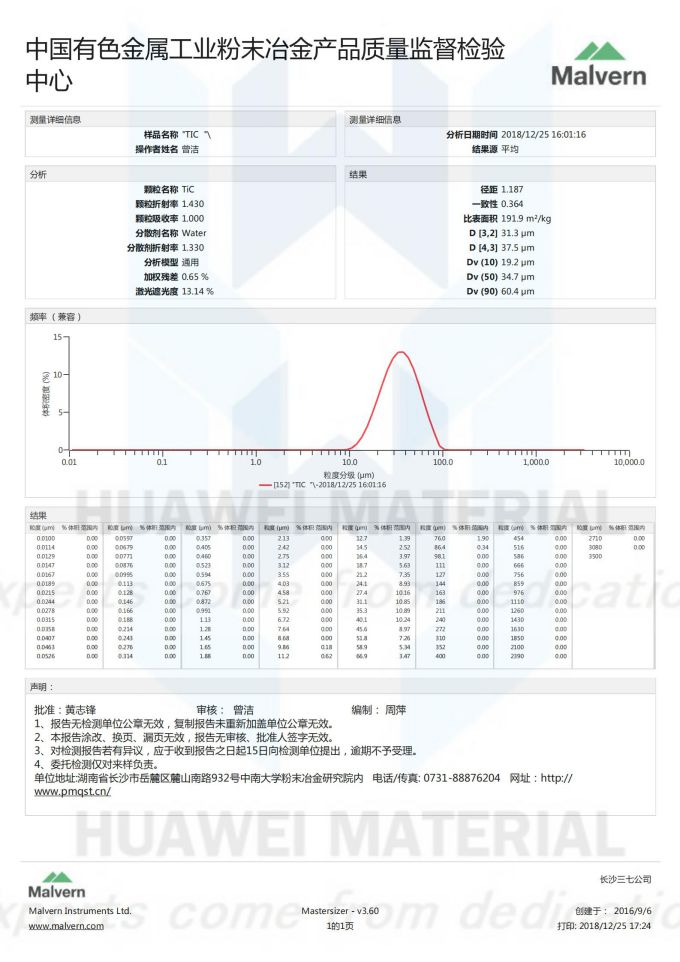

Size Distribution Report of  Titanium carbide TiC-20181225_00
XRD of  Titanium carbide TiC-20200505-2_00

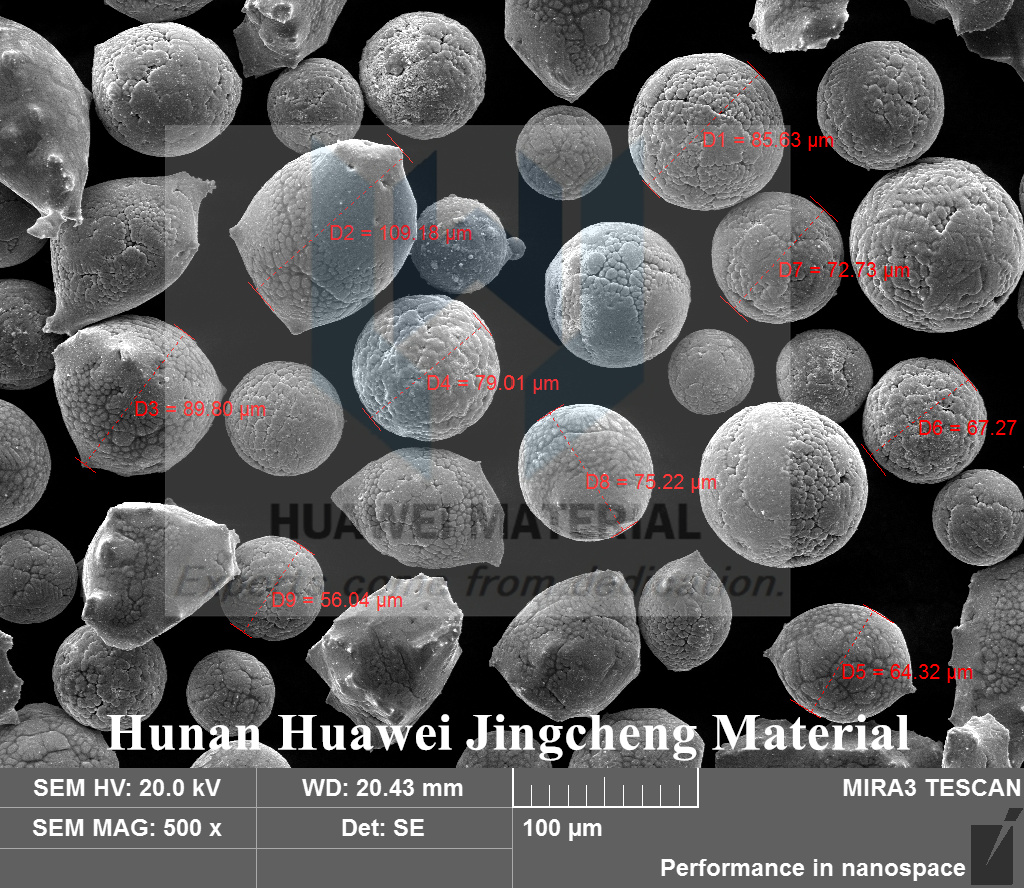

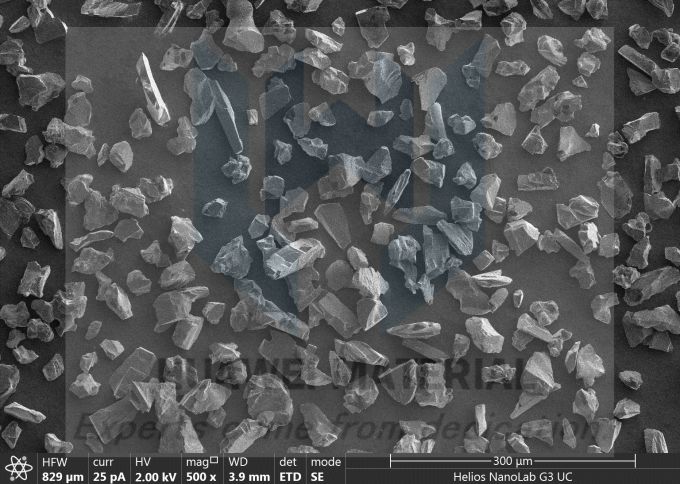

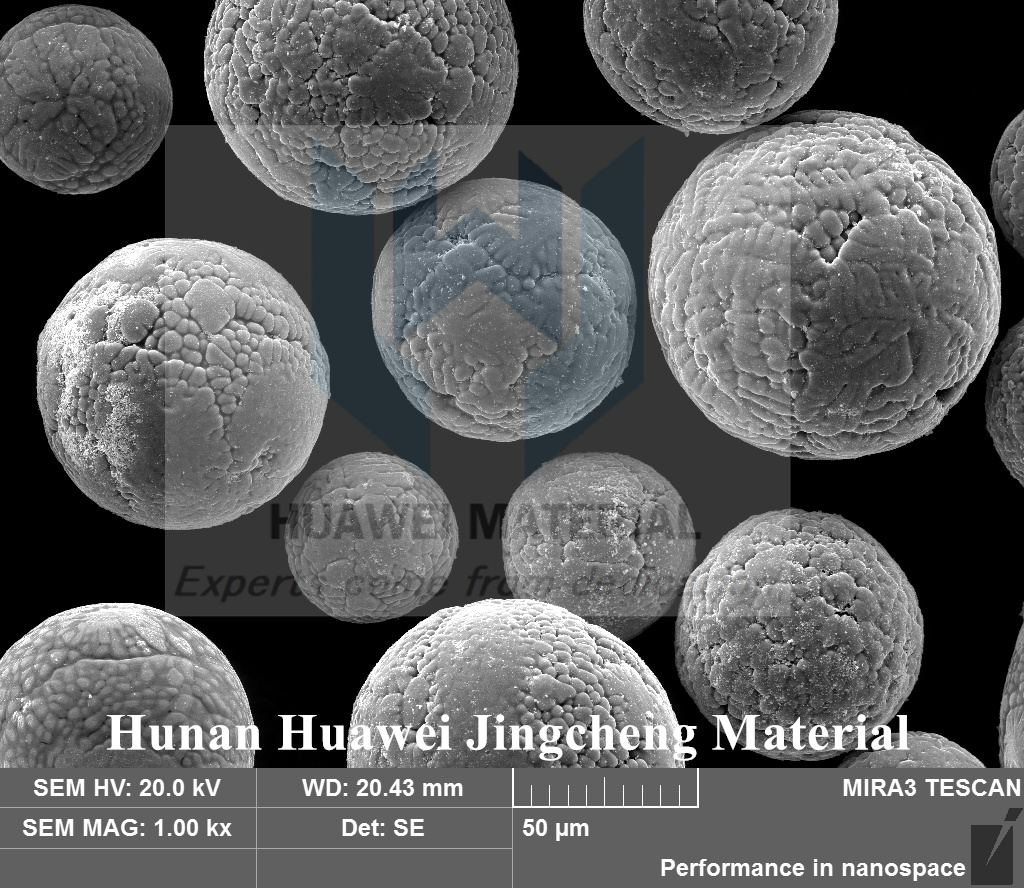

Titanium carbide TiC_SEM 008

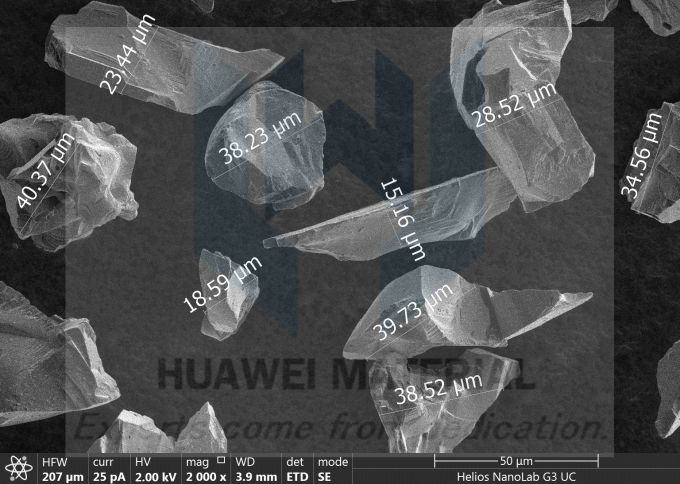

Titanium carbide TiC_SEM 009
