TaC-Tantalum carbide

  • Molecular weight : 192.96
  • Colour: yellow
  • Theoretical carbon content: 6.22%
  • Density: 14.3g/cm3
  • Melting point: 3875ºC
  • Boiling point : 5500ºC
■ Specifications

Product overview:

Tantalum carbide is mainly used in powder metallurgy, cutting tools, fine ceramics, chemical vapor deposition, hard wear-resistant alloy cutters, tools, molds and wear-resistant and corrosion-resistant structural components additive,so to improve the toughness of alloy.

Performance characteristics:

1, High purity: the highest purity can reach 99.99%, XRD detected no impurity phase, GDMS detected low metal impurities content elements;

2, Small particle size: the minimum particle size is 30-50nm;

3. Concentrated distribution: standard normal distribution of particle size, no bimodal or multi-modal.

4. Typical Products:

(1) Standard 1-3um (D10≥1.0um, D50:1.2 ~ 1.8um, D90≤3.0um, 80% particle size concentrated in the range of 1-3um);



(2) 10-60um cermet powder (D10 > 10.0um, D50:20 ~ 30um, D90 < 60.0um, 80% particle size concentrated in the range of 10-60um).

■ Technical Data

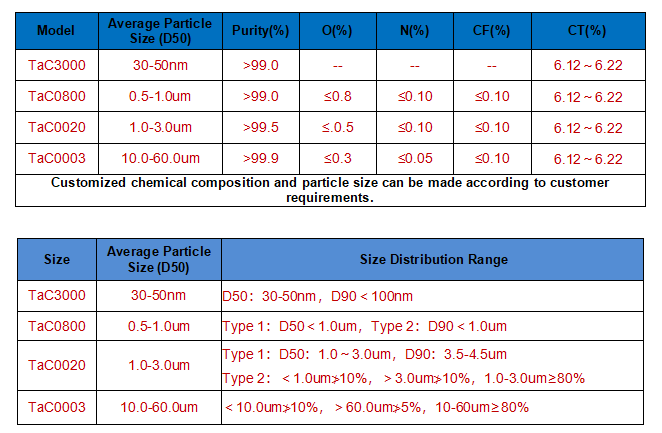

TaC-technical parameters

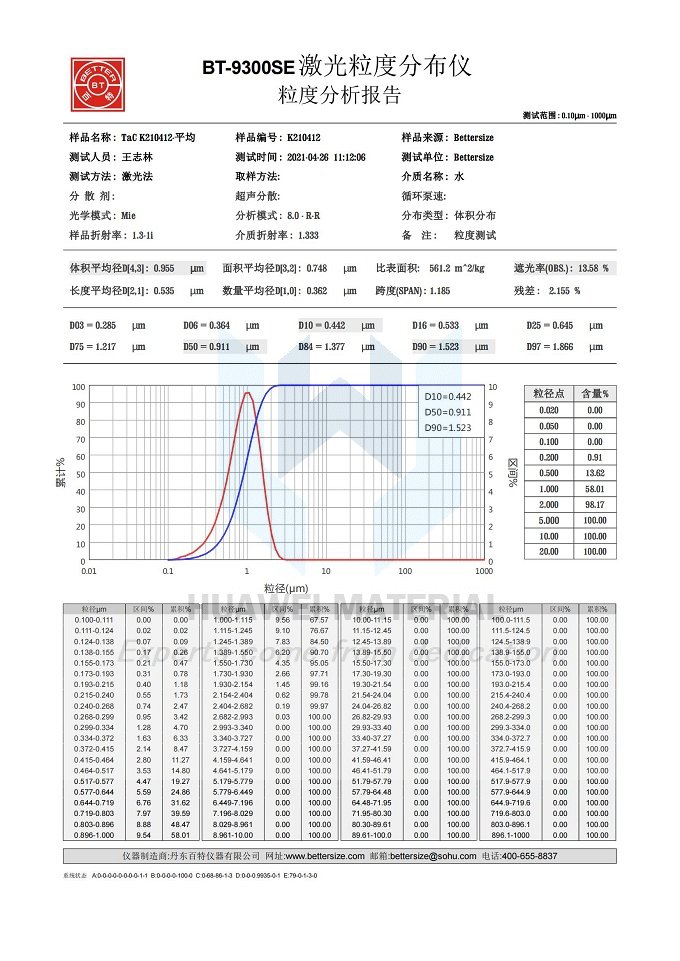

Size Distribution Report of TaC(D50=0.91um)20210426_00
